The compact and lightweight FLIR TG-Series thermal imaging tools make it easy to identify equipment issues and detect potential failure points. With these handheld devices, you can quickly diagnose problems and take action. The TG Series is designed to accurately measure and image high temperature targets, troubleshoot repairs, and monitor processes.

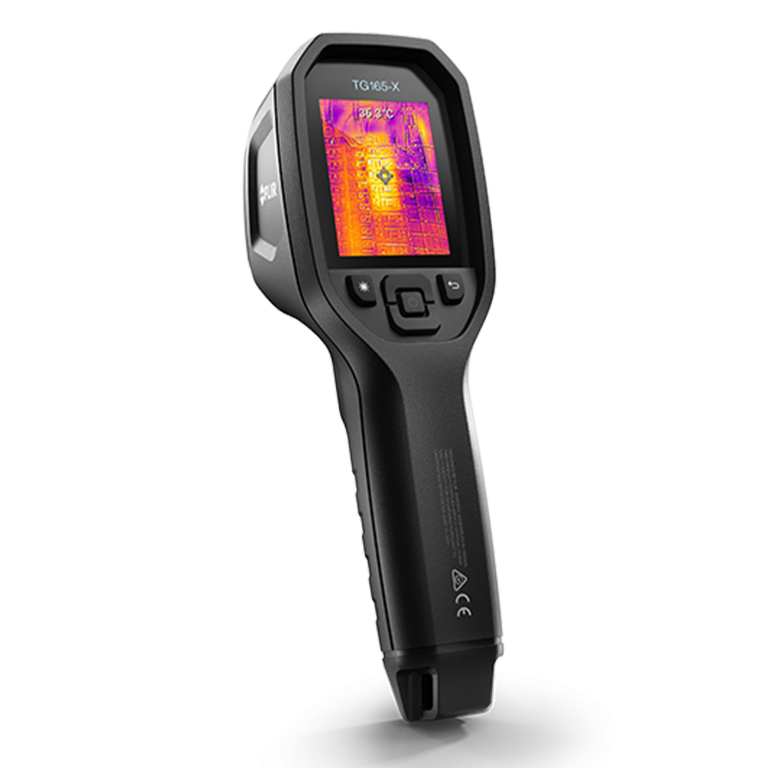

True thermal imager, 80 x 60 (4,800 pixels)
Temperature range: -25°C to 300°C (-13°F to 572°F)
Shows you what’s hot and where to aim
Wide 51° × 66° field of view
24:1 spot size ratio for safer distance measuring
The first spot temperature gun of this level to offer FLIR MSX, for a sharper, easier to understand picture
Easily save images and data for documentation
Download images fast over USB
Built to withstand a 2-meter drop
Covered by FLIR’s exclusive 2-10 warranty
Compact and durable to easily stow in a crowded tool bag

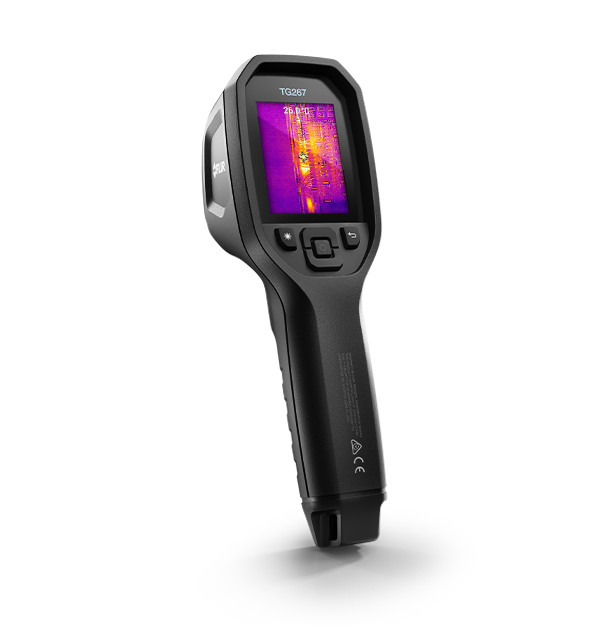

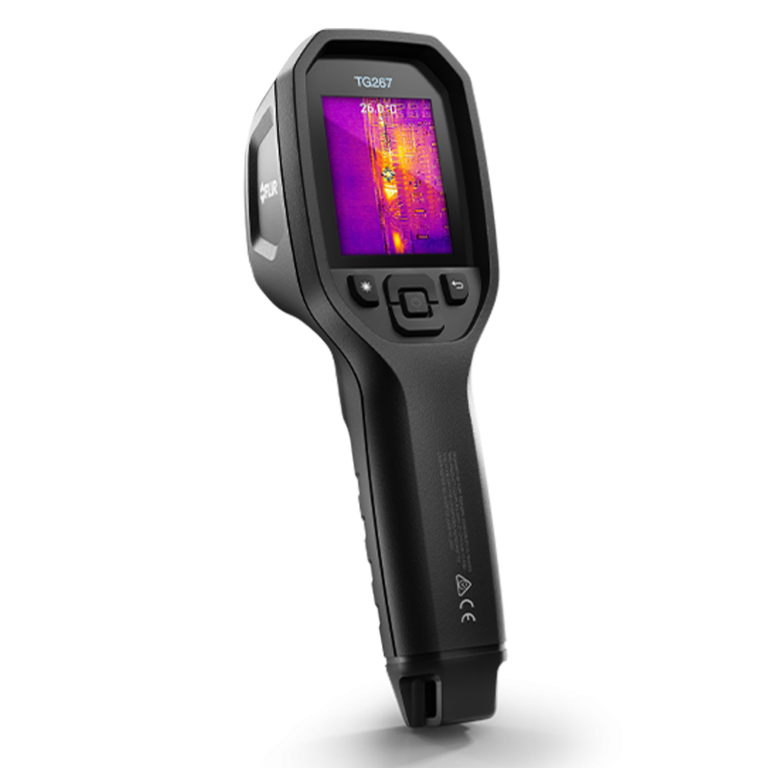

True thermal imager, 160 x 120 (19,200 pixels)
Temperature range: -25°C to 380°C (-13°F to 716°F)
320 × 240 pixel, 2.4 in color LCD
Included Type-K thermocouple; displays measurement below thermal reading
Center spotmeter with a spot-size ratio of 24:1
Patented MSX® embosses visual details on the thermal image to create a sharper, easier to understand picture
Store up to 4 GB of data
LED floodlight and “bullseye” style laser pointer
Rugged design, IP54 enclosure protects from dirt, dust, oil

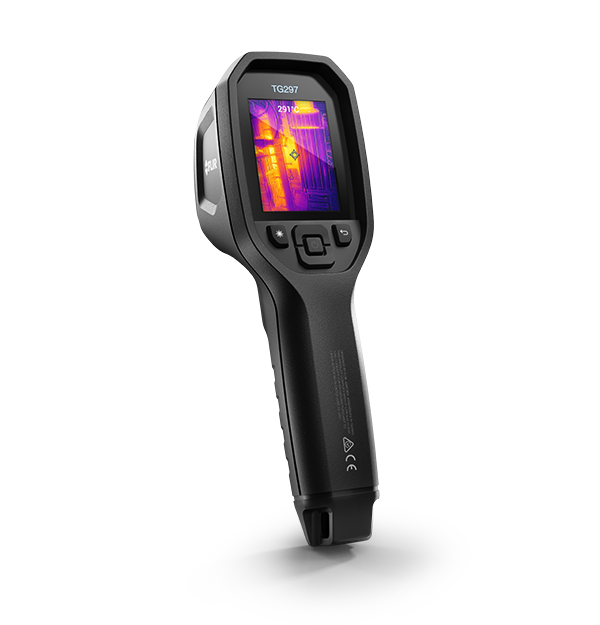

True thermal imager, 160 x 120 (19,200 pixels)
Temperature range: -25°C to 1030°C (–13°F to 1886°F)
Movable filter improves color gradients at highest temperatures, so you can see subtle temperature variations
320 × 240 pixel, 2.4 in color LC
Center spotmeter with a spot-size ratio of 30:1
Patented MSX® embosses visual details on the thermal image to create a sharper, easier to understand picture
Store up to 4 GB of data
LED floodlight and “bullseye” style laser pointer
Rugged design, IP54 enclosure protects from dirt, dust, oil

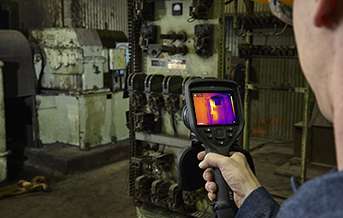

Improve plant reliability and avoid unexpected downtime through routine inspection with a rugged, handheld Exx-Series camera. Vibrant thermal images help manufacturing and facilities inspectors spot overheating equipment so they can immediately diagnose the issue, begin repairs, and prevent equipment failures.

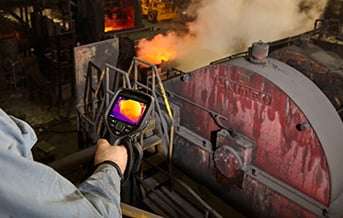

Perform thorough surveys, prevent equipment failures, and maintain safety with routine inspections using a 640 × 480 handheld thermal imaging camera. The higher resolution detector allows inspectors to stand at a safe distance when surveying potentially hazardous targets.
Improve energy efficiency and discover insulation voids, roof leaks, HVAC deficiencies and more with the Exx-Series. Instead of wasting time hunting for the problem, users can quickly validate the need for comprehensive repairs and demonstrate the extent of the damage through easily-interpreted thermal images.
