FLIR MR160

£689.00 ex VAT

£826.80 inc. VAT

Key Applications

Troubleshoot quickly:
Quickly assess insulation and moisture issues using the MR160’s pinless sensor for non-invasive readings or the external pin probe for direct contact measurements. This allows fast identification of problem areas without unnecessary disruption.
Verify and detect moisture:
Use the integrated thermal camera to pinpoint potential moisture zones, then confirm the moisture level with either pin or pinless measurements for accurate and reliable results.
Compact, rugged, durable:
Designed for real-world use, the MR160 is durable, compact, and equipped with a built-in rechargeable battery, making it easy to carry and dependable in the field.

Is the FLIR MR160 not what you’re after? Take a look at the upgrade above it, the FLIR MR176 or even better than that, the FLIR MR277 ← click these links to find out more about each model.

Product Details

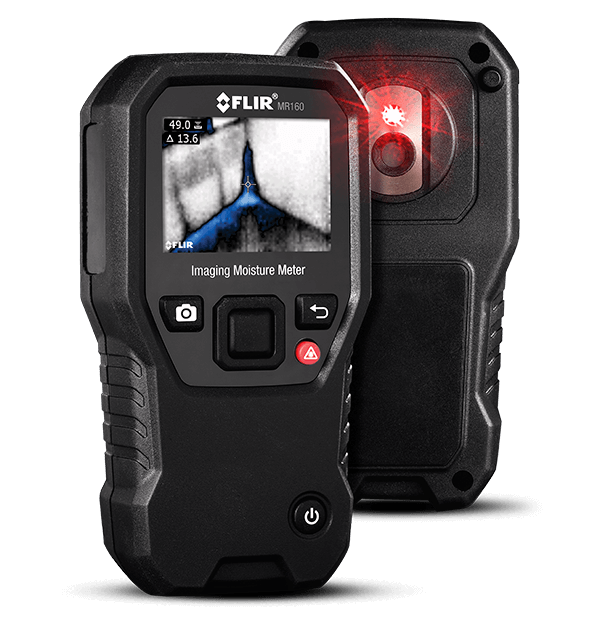

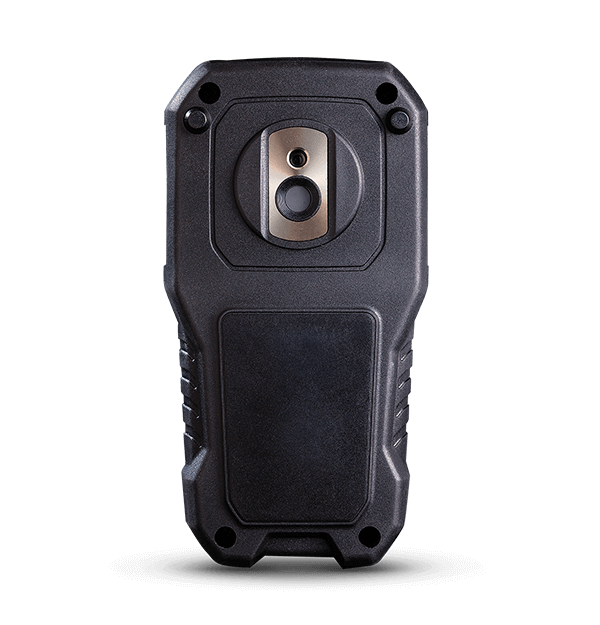

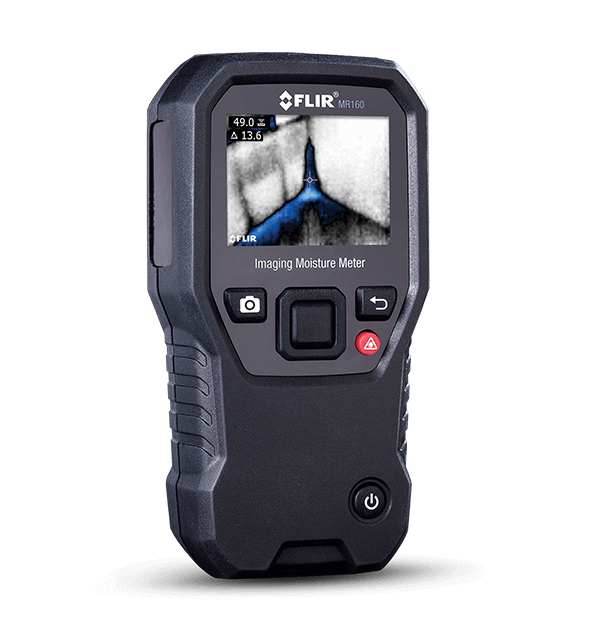

FLIR MR160

The FLIR MR160 is a breakthrough in inspection technology, combining a precision moisture meter with integrated thermal imaging so you can see and measure issues faster and more accurately. With its built-in infrared camera guiding you directly to trouble spots, you can locate moisture damage, insulation failures or air leaks with confidence before performing contact testing. Portable, rugged and ready to use, the MR160 streamlines your workflow from on-site diagnostics to reporting, making it an essential tool for building inspectors, remediation specialists and maintenance professionals.

Di-LOG Energy is a part of the Di-LOG group, for more information click the link to view our group divisions.

Is the FLIR MR160 not what you’re after? Take a look at the upgrade above it, the FLIR MR176 or even better than that, the FLIR MR277 ← click these links to find out more about each model.

Specifications

FLIR MR160

Thermal Imaging Resolution: 4800 pixels (80 × 60)

Thermal Sensitivity

<0.15°C

Pin Moisture via Ext Probe Range (Accuracy): 0–100% WME (± 5%)

Field of view (Width x Height): 51° × 38°

Display: 2.3″ 64k color TFT

Storage Media:: Saved Image File format: BMP with measurement values overlaid; Stored Image Capacity: 9999 images

Imaging & Optical

Image Display: Colour moisture alert

Detector Pitch: 12 µm

Detector Type: FLIR Lepton® microbolometer

Digital image enhancement: No

Field of view (FOV): 51° × 38°

Minimum Focus Distance: 10cm (4″)

Spectral Response: 8–14µm

Image Frame Rate: 9 Hz

Laser: Single laser pointer to centre of thermal image

Pinless Measurement Depth: 0.75″ (19mm) Max

Pinless Moisture Range: 0–100 relative measurement

Response time Pin Mode

750ms

Response time Pinless Mode

100ms

Measurements

Camera size (L x W x H): 12.1 cm x 14 cm x 33.1 cm

Center spot: Yes

Languages: Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish.

Set-up Commands: • Local adaptation of units, language, date, and time formats • Screen brightness (high, medium, low) • Gallery, deletion of images
